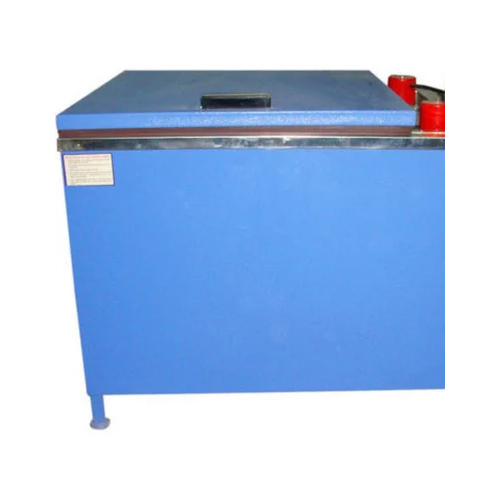

Curing Tank

Name: Curing Tank
Brand: S.M. ENGINEERING WORKS
Price: 52000 INR
Availability: InStock

Price 52000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Curing Tank Specification

Features
Rust-proof Tank, Efficient Heating Element, Water Circulation System

Port Size
1 inch (water inlet/outlet)

Power
220-440 Volt (v)

Max Height
450 mm (Standard)

Frequency
50 Hz

Humidity
95% RH (maximum)

Equipment Type
Concrete Testing Curing Tank

Mounting Type
Floor Standing

Interface Type
Manual/Digital

Temperature
Ambient to 100C (with thermostat control)

Operating Voltage
230V AC, Single Phase

Application
Curing of concrete cubes and cylinders

Product Type
Cast Iron Curing Tank

Response Time
Immediate upon activation

Accuracy
1C (Temperature control)

Material
CI

Display Type
Digital Temperature Display

Specimen Size
150 mm (Standard) / 100 mm (Optional)

Resolution
1C

Number of Specimens
Up to 6 Cubes of 150 mm each

Power Supply
Electric

Automation Grade
Semi-Automatic

Usage
Laboratory/Construction Site Concrete Curing

Capacity
6 Cubes (Standard); customized on request

Machine Weight
140 kg (Approx.)

Control Mode
Digital Timer/Manual Switch

Drain Valve
Provided

Compliance
IS: 516 / ASTM C192

Heater Capacity
2 kW (Standard)

Lid/Top Cover
Removable, Insulated Lid

Safety
Overheating Safety Cutoff

Thermostat
Digital Temperature Controller

Water Circulation
Fitted circulation pump for uniform temperature

Tank Material
Stainless Steel or Fiber Reinforced Plastic (as required)

Inner Dimensions
700 mm x 450 mm x 450 mm (LxWxH, standard)

Exterior Finish
Powder-Coated/Stainless Steel

Curing Tank Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
20 Days

Main Domestic Market
All India

About Curing Tank

Our company has earned accolades in offering a broadarray of Curing Tank It works by using electrical current totransfer the rust from the pan to a sacrificial piece of metal submerged inwater. This tank is designed for curing concrete cubes and cylinders. Curing Tank is to prevent the iron from corroding. It is also usefulto maintain the set temperature between ambient

Advanced Temperature Control and Safety

Achieve uniform curing results with the built-in circulation pump and digital temperature controller, ensuring precise accuracy of 1C. The immediate response system and overheating safety cutoff provide both safety and dependable performance, making it suitable for sensitive testing applications.

Robust Construction and Customizable Design

Manufactured with either stainless steel or fiber reinforced plastic, this curing tank is rust-proof, highly durable, and designed for floor mounting. The tank can be customized in size or capacity upon request, and the insulated removable lid helps maintain high humidity and temperature stability, ideal for curing concrete specimens efficiently.

User-Friendly Operation and Compliance

Featuring both manual and digital control interfaces, the curing tank is simple to operate. Drain and inlet valves with 1-inch ports, efficient heating, and a clear digital temperature display enhance ease of use. It adheres to IS: 516 and ASTM C192 compliance for quality control procedures.

FAQ's of Curing Tank:

Q: How does the water circulation system improve the curing process in this tank?

A: The fitted circulation pump ensures uniform water temperature throughout the tank, eliminating hot or cold spots. This consistency is critical for evenly curing concrete specimens and meeting compliance standards such as IS: 516 / ASTM C192.

Q: What materials are available for the construction of the curing tank, and how do they benefit users?

A: The tank is available in stainless steel or fiber reinforced plastic. Stainless steel offers superior durability and rust resistance, while fiber reinforced plastic provides lightweight strength and corrosion resistance, enhancing usability and lifespan.

Q: Where can this curing tank be used effectively?

A: This equipment is ideal for laboratories and construction sites involved in concrete quality testing, especially where compliance with IS: 516 and ASTM C192 is required. Its robust design allows use in industrial and field environments alike.

Q: What is the process for operating the curing tank?

A: Fill the tank using the designated 1-inch water inlet, set the desired temperature on the digital controller, and load your concrete cubes onto the rack. Activate the system manually or via digital timer; water is circulated and heated, maintaining precise, uniform curing conditions.

Q: When is it necessary to use the digital timer or manual switch control mode?

A: The digital timer is ideal for standard, consistent curing cycles, while the manual switch offers flexibility for irregular procedures or when specific intervention is required, enhancing operational versatility for users.

Q: What are the main benefits of using a curing tank with digital controls and insulation?

A: Digital controls provide precise temperature management and consistency. The insulated lid minimizes heat and humidity loss, ensuring ideal curing environments, which results in higher quality and more reliable concrete test outcomes.
