Core Cutting Machine

Name: Core Cutting Machine
Brand: S.M. ENGINEERING WORKS
Price: 90000.00 INR
Availability: InStock

Price 90000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Core Cutting Machine Specification

Material
MS

Usage
Industrial

Test Range
Core diameter up to 150 mm

Frequency
50 Hz

Mounting Type
Bench/Stationary

Humidity
0-95% RH (Non-condensing)

Number of Specimens
Single specimen at a time

Measuring Range
50 mm to 150 mm diameter cores

Application
Cutting core samples from concrete, rock, masonry and asphalt

Display Type
Analog/Mechanical

Operating Voltage
220V

Features
Heavy duty structure, water cooling, adjustable vise

Color
Blue

Response Time
Instantaneous

Product Type
Core Cutting Machine

Max Height
Up to 400 mm

Accuracy
1 mm

Hardness
Suitable for medium to hard specimens

Interface Type
Manual

Resolution
1 mm

Specimen Size
Cores from 50 mm to 150 mm diameter

Port Size
1/2 inch inlet

Power Supply
220V AC, 50 Hz

Automation Grade
Semi-Automatic

Temperature
5C to 55C

Equipment Type
Core Cutting Machine

Capacity
Up to 200 mm depth of core

Machine Weight
Approx. 125 kg

Test Speed
Variable, up to 100 mm/min

Test Width
Up to 150 mm

Test Stroke
Up to 400 mm

Control Mode
Manual / Semi-Automatic

Drive Type
Belt drive

Cooling System
Water cooled cutting blade

Noise Level
< 70 dB

Construction Material
Mild steel body with anti-corrosive coating

Motor Power
2 HP, single phase

Safety Features
Blade guard, emergency stop switch

Cutting Depth Adjustment
Manual Micrometer Adjustment

Blade Size
Up to 150 mm diameter

Cutting Blade Material
Diamond tipped blade

Core Cutting Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
20 Days

Main Domestic Market
All India

About Core Cutting Machine

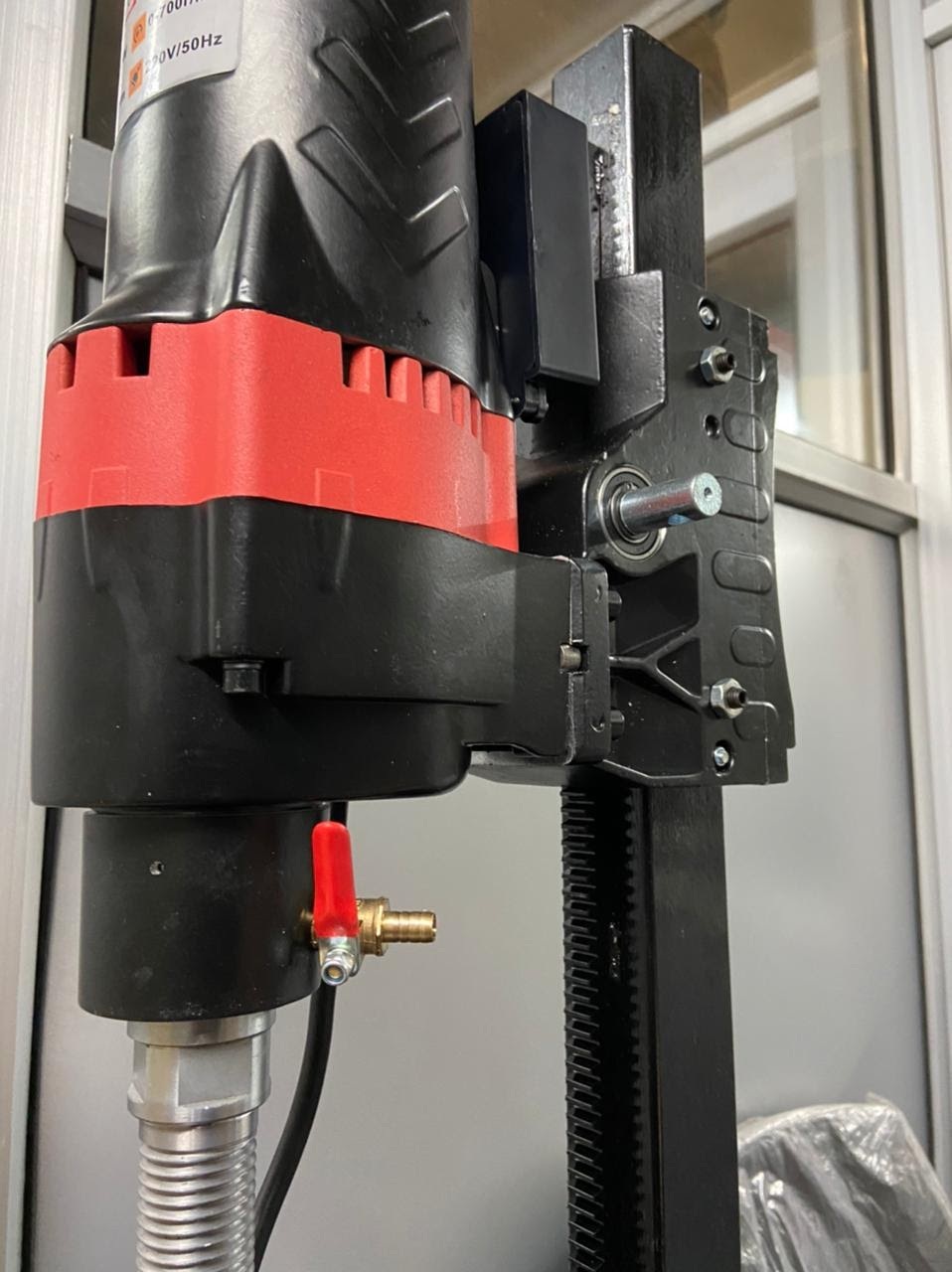

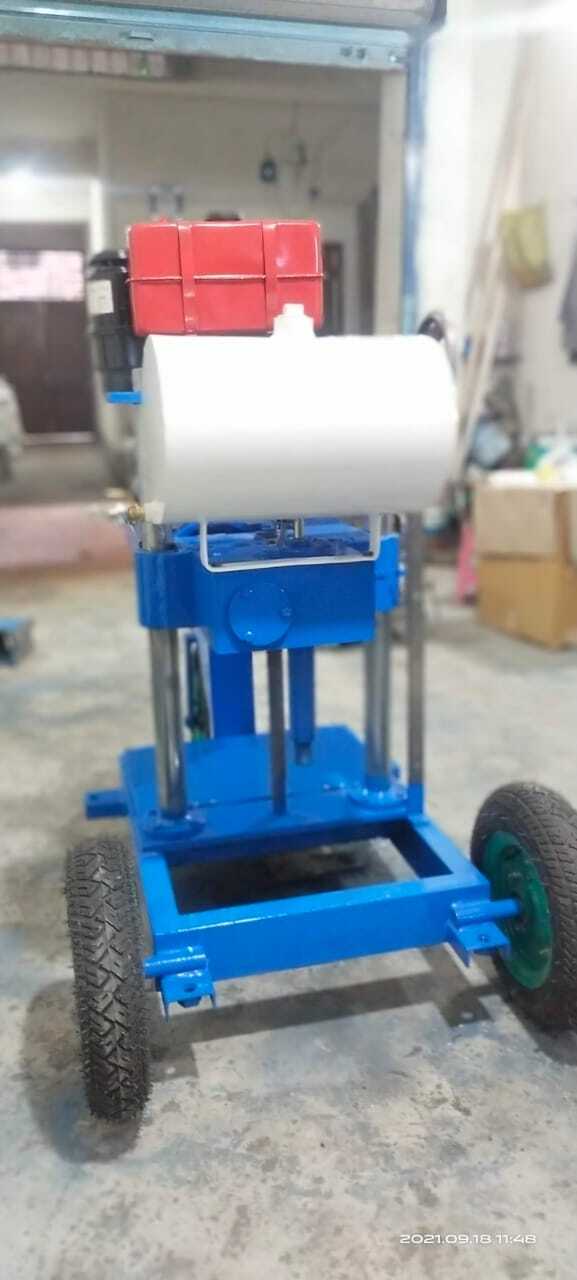

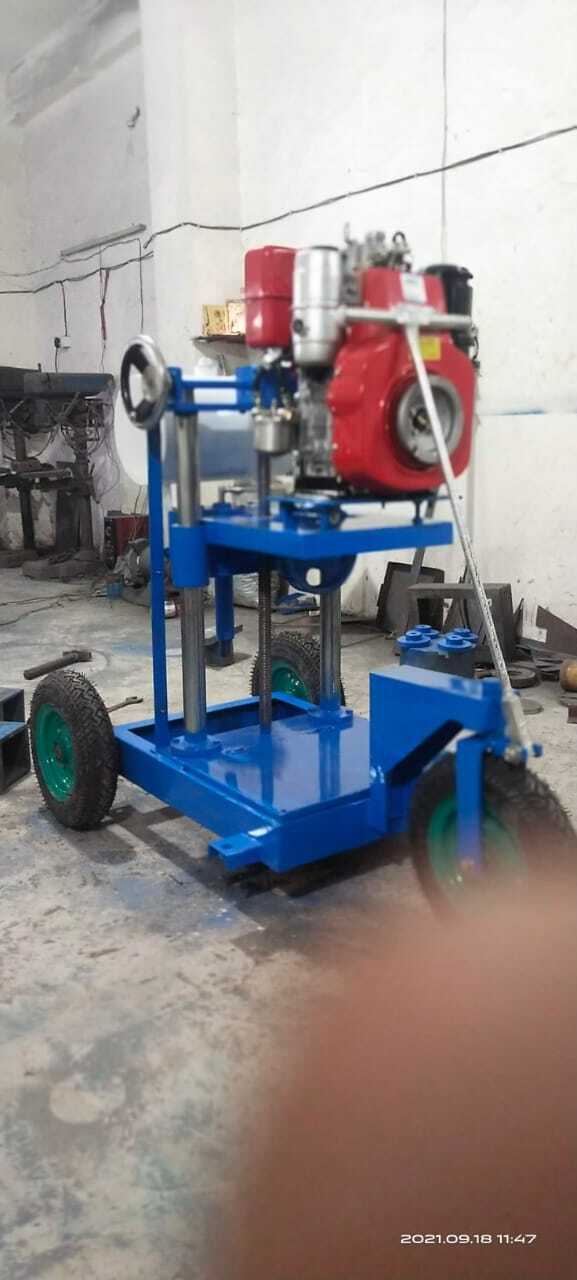

Specification: Suitable to cut/drill cores of concrete, rocks, stones, tiles or the similar materials. The machine is suitable for core samples of size upto 150 mm diameter with the help of thin walled diamond bits which are at extra cost. The machine has sturdy base with pillar support in which rack and pinion is provided for adjustment in height and penetration assembly. The leveling screws are provided at the base. For gripping the sample in position suitable grips are provided A suitable petrol engine is fitted in the machine with cooling arrangement with water. The base frame is also fitted with wheels for ease of transportation.

Dimension approx, are as under:

Height : 1300 mm
Base : 625 x 900 mm
Head travel on rack : 500mm
Drill speeds : 900 RPM. for soft samples and 350
R.P.M. for hard Samples
Water swivel : Built in the machines.

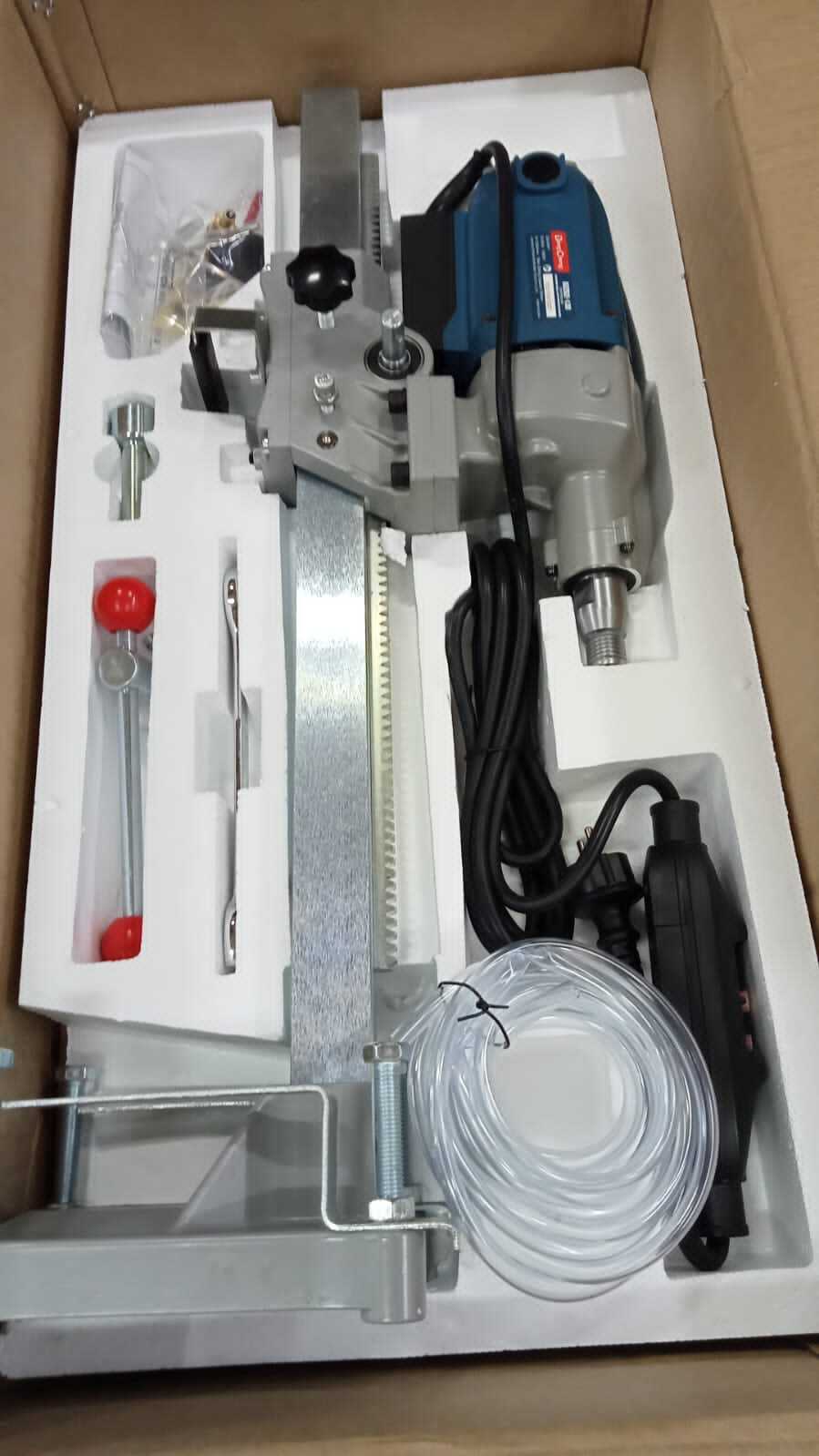

Accessories : (1) Thin wall diamond bits.
(2) Core barrel.

Precision Core Cutting for Tough Materials

Engineered for industrial and laboratory applications, this machine ensures accurate core extraction from a range of hard materials including concrete, masonry, and asphalt. Its diamond-tipped blade, paired with water cooling, delivers efficient results while minimizing dust and heat during the cutting process.

Built for Durability and Ease of Use

Manufactured from heavy-duty, anti-corrosive mild steel, the core cutting machine is designed to withstand rigorous use. With manual and semi-automatic control modes, as well as a manually adjustable micrometer for cutting depth, the operator benefits from flexibility and precision during operation.

Safe Operation and Flexible Control

User safety is prioritized with integrated blade guards and an emergency stop switch. The machine supports both manual and semi-automatic modes, allowing for controlled and adaptive cutting operations suitable for multiple sample sizes and specimen types.

FAQ's of Core Cutting Machine:

Q: How does the water cooling system benefit the core cutting process?

A: The water cooling system continuously cools the diamond-tipped cutting blade, reducing heat build-up and minimizing dust generation. This enhances blade life, ensures clean cuts, and provides safer, more efficient operation during extended use.

Q: What sizes and types of core specimens can this machine handle?

A: The machine accommodates single specimens ranging from 50 mm to 150 mm in diameter and up to 200 mm in depth. It is suitable for extracting core samples from concrete, rock, masonry, and asphalt, covering most core sampling needs in laboratories and construction sites.

Q: When is it necessary to use the emergency stop switch on the machine?

A: The emergency stop switch should be used immediately if an unsafe condition occurs, such as unexpected machine behavior, jamming, or if someone is at risk. It instantly halts the operation to prevent accidents or damage.

Q: Where should the core cutting machine be installed for optimal performance?

A: The machine is best mounted on a stable, stationary bench in a well-ventilated industrial or laboratory environment with access to a 220V power supply and a water inlet. This ensures sturdy operation and efficient water-cooling during core cutting processes.

Q: What is the process for adjusting cutting depth and width?

A: Cutting depth is manually set using the integrated micrometer adjustment, ensuring accurate, repeatable cuts up to 200 mm deep. The adjustable vise allows secure placement of core specimens of varying diameters, up to the 150 mm cut width.

Q: How is the noise level managed during operation?

A: With operational noise below 70 dB, the machine remains suitable for indoor use, providing a quieter environment for laboratories and industrial settings compared to traditional cutting methods.

Q: What are the main benefits of using this core cutting machine for sample preparation?

A: Key benefits include high accuracy (1 mm), versatile control (manual/semi-automatic), enhanced safety features, durability against corrosion, reduced operational noise, and efficient blade cooling, all of which contribute to reliable and high-quality specimen extraction.
